Wednesday, December 22, 2010

A Joyful Christmas Wish to All

With special thanks to Karen,  "The Graphics Fairy" for sharing the beautiful clip art above.

Thursday, December 9, 2010

Barn Board Cupboard

I've made a few things with barn board, and wanted to try something different so I designed a small cupboard.

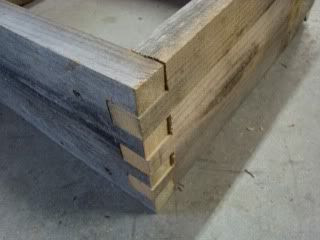

I thought the cupboard would work out best if it was the width of the boards, which is 5 1/2" and with large box joints on the top. So the two sides and the top are box-jointed (also called finger-jointed) on the table saw. They will look great for this rustic style, especially when large and chunky.

The length of each side will be 23" and since my pieces had a 45 deg. cut on the bottom edge, I left them that way (you can see that in the final photo).

A dado is run on each side for the bottom to fit into.


I'm just designing as I go because I CAN.

I also decided to have a log branch as a towel holder across the bottom, so I drilled out the 1 1/4" diameter size of my log near the bottom of each side and about 1/2" deep.


Here are the pieces all laid out:


Here it is glued up:


There will be a door on the front and a middle shelf inside.  The door panel was made by gluing two pieces together.  It looked plain by itself so I felt the need to router a design on it.  How about a barn star, influenced by the fabulous blogger Donna at Funky Junk Interiors

I drew the star on the door panel and used a "V" bit in the router, here it is partially done:


When it was finished I put some watery brown paint in the raw cut lines.

Then I routed out a ledge on the back edges to fit in a piece of 1/8" thick plywood for the back. I nailed a shelf in from the sides ... something I would never do with any project other than rustic barn wood! (I hope my cabinetmaking teacher forgives me for this)


And I added a little homemade toggle opening and black metal hinges and knob.


This cupboard is heavy and solid, is one-of-a-kind, and would look great in any room. The finished size is about 13 3/4" wide x 23" tall x 5 1/2" deep.


Linking to:

Knick of Time

Funky Junk Interiors Sat Nite Special
Miss Mustard Seed Furniture Friday
Repurposed Life Catch as Catch Can
Under the Table and Dreaming Sunday Showcase
Tools are for Women Too Link Party
Dittle Dattle Amaze Me Monday
Blue Cricket Show and Tell
Sisters of the Wild West

Everything I make is for sale, so if you see something you like, please contact me.

Thursday, November 25, 2010

Making a log shelving unit - part 3

Please first
part 1 and
part 2
by clicking on the links

I need to make a cross piece for the back of the unit.  This has to be something that I can easily take on and off the ladder parts and move to different locations for craft shows or displays.

I'm using old barn board for the shelves and just lightly sanded them and trimmed all the boards to the same length.

I decided to use another piece of barn board ripped down the middle with a bolt and nut holding the two halves together .  That way it can be stored or transported  with the two arms stacked one on top of the other and can open up like scissors when needed.

I attached the bolt and then unfolded the arms so that the width of the unit would be about 4' as the length of my boards is about 56".

 I marked the angle of the floor at this point and cut the bottom of each arm at this angle and then screwed through, attaching the arms to the bottom (back) of the ladder section.

The top of the arms is screwed similarily to the top of the ladders.

The top plank was screwed into the top rungs to make the unit more solid, the others are just sitting on the rungs. It's easy to take apart and transport. Two ladders, the folded up cross piece and five shelf boards.

Here is the finished shelving unit with some of my signs and things on it:

Linking to blog parties at:
Funky Junk Interiors
The Shabby Chic Cottage
Blue Cricket Design

The DIY Showoff
Cottage Instincts
Under the Table and Dreaming
Tools are for Women Too
It's So Very Cheri
Dittle Dattle
aka Design

Everything I make is for sale, so if you see something you like, please contact me.

Wednesday, November 24, 2010

Making a log shelving unit - part 2

I've made the rungs (see part 1) so the next next step in making my shelving unit is the ladder legs or uprights.

Of course, there are four and the pieces I had ranged from just over 5' up to over 7'.  The ends were not even and one was a bit punky, so I figured the maximum height I could use was 5' 1", which seemed just right for this project.

These pieces I had were mostly already peeled, but there were a few places that had some bark that I stripped with a carving knife. I also needed to clean up some little branches sticking out from the sides so I did that by using a small handsaw parallel to the logs.  After that I did some light sanding trying to leave character in the wood.

Now to the holes in the uprights.  I decided on five shelves with a 10" spacing between them.  Marking them wasn't so easy because, unlike wood that has been planed and cut straight and parallel, these logs not only weren't dead straight, but also they changed in diameter from 1 1/2" - 2" and had curved faces.  Wood off the jointer, planer and tablesaw is much easier to work with!

The widest diameter of each of the four pieces would be the bottom of each upright, so it would narrow at the top.  I  marked out the center of each hole for the rungs by using a long straightedge.  At first I was going to drill the holes with a spade bit but then realized that the long point on the end of that might go through the log and make a hole in the other side, which I didn't want.  So I had to buy a new 5/8" forstner bit to match the tenon cutter I had.  I put a piece of masking tape on the bit to give me some idea of how deep to go with the drill.  This is not precision because, as I said the logs are not straight and change in diameter.

 So, five holes were drilled in each upright and then the rungs were set in as evenly as possible.  I had some rearranging to do because not only were the uprights uneven, but so were the rungs.  I had to fight with it a bit and realized that some of the tenons will not be as far in the holes as others because of this unevenness.

I glued and clamped the rungs in the ladder legs:

Here's the two ladders finished:

 Next post... finishing the unit by getting the planks ready and making the cross piece on the back...

Everything I make is for sale, so if you see something you like, please contact me.

Tuesday, November 23, 2010

Making a log shelving unit - part 1

 I needed to make a shelving unit to hold some signs and things at a craft show I was attending a few weeks ago.  I'm just getting to posting what I came up with.

I wanted something that was easy to take in the vehicle and put together at the show and then take apart again to come home.  I also wanted to use some old logs and make it in a rustic style.

 Something like this but without all the X's:

from: online source that I can't find, but it cost $1518
So basically I would make two "ladders," one for each end and then one large cross across the back to hold it from twisting.  Then I would just sit barn board planks on the ladder rungs.

I had 4 logs, or branches that were very straight and just over 5' long and with a diameter that ranged from 1 1/2" - 2" .  This is what I would use for the ladder uprights, or legs.  I don't even know what type of tree these came from.

The rungs are to be made of maple from trees cut down a few years ago on our property and the branches were stored in my barn for future use. They are about 3/4" - 1" in diameter.

I will use the Lee Valley tenon cutter to shape each end of the rung. This is the same tool I used when I made my log coffee table . It is like a pencil sharpener that attaches to the end of your electric drill.  It turns very quickly and needs to be held strongly.  I cut a U shape out of a 2x4 to hold the branch and clamp both securely to my workhorse.

Then the cutter is held as horizontally as possible and pushed onto the end of the branch to cut the tenon.  I cut tenons about 1 1/4" long.

 Since the old barn boards I have that I want to use for the shelves are about 5 3/4" wide, I needed rungs that would leave just over that much space between the ladder uprights.  That worked out to a rung length of 8" (which includes the tenons on both ends).

 Next post... drilling the holes in the uprights...

Everything I make is for sale, so if you see something you like, please contact me.

Wednesday, November 17, 2010

Black Horse Ranch sign

  This is one of my favorite signs I've ever made:

Black Horse Ranch $50

 It's 14" x 28" and the side edges are purposely not cut straight.  I search the internet for interesting shapes, this horse outline is called a silhouette.

This is pallet wood, holes and all still there.  I used my vinegar-and-steel-wool mixture left overnight in a jar and then with water added and brushed on like a stain.

I handpainted the letters, curving the top ones just a bit and then the horse.  It just needed a little something else so I added the horseshoes.

I just made up the Black Horse Ranch and while writing this thought I should "google" it.  And there is one... in Wyoming... I LOVE Wyoming! So that is cool, but I just chose letters that would look nice with the black horse silhouette.

Linking to
Cottage Instincts
Blue Cricket
Savvy Southern Style

Everything I make is for sale, so if you see something you like, please contact me.

Friday, November 12, 2010

Wood Buoys

This is something that I completely stole from Stephanie Lynn at Under the Table and Dreaming.
She copied the idea from Pottery Barn and wrote a tutorial about it HERE

Basically I took leftover pieces of 4 x 4 posts (actual size is 3 1/2 x 3 1/2) and angled the ends and drilled a hole through the top and painted them.

Easy and cool!

 Posting at the following great blogs:
Donna's Number Party at Funky Junk Interiors
Stephanie Lynn's Sunday Showcase Party
Cindy's Make it For Monday Party
Becca's Blue Cricket Show and Tell

Everything I make is for sale, so if you see something you like, please contact me.

Monday, November 8, 2010

Barn Board Mirror

Looking at my upper barn door that I made a couple years ago gave me the inspiration for a mirror. I used plexiglass in the door but will use a 12" square mirror (only $2 at our Dollar Store) for this project.

For the wood I'm using old barn board that actually came from this barn when I redid the upper loft section a few years ago.  Of course my husband thought I was nuts to keep the wood, but it had character and was 1" thick, so I stacked it up in the loft to await the day I figured out what to use it for.

I left all the worm holes, although I cleaned them out thoroughly.  I slightly sanded the wood to clean it up a bit, but tried not to get rid of the character.  I even left the angled bottom and top, although that's hard to see in the photos.

The first thing I did was make a dado across the bottom of my four boards that was the thickness of the cross piece. This way the cross piece (shelf) will sit into the groove and there will be less chance of anything twisting.

 Here you can see the dado across all the boards:

and here is the cross piece/shelf sitting in the dado:

I left about 1/8" spacing between the boards and screwed them in from the back:

 In order to frame the mirror I cut up some barn board into 1" square pieces with 45 deg. ends and long enough to frame the mirror.
I took off the thickness of the mirror plus about 1/16" from the inside edge of the frame, this way the mirror sits half under the frame.

These are the four frame pieces:

I screwed on a top 1" x 1" cross piece from the back as well as the mirror frame:

 This is a very heavy piece, it measures 23 1/4"  across and is 30" tall.

 I'm showing this at the following parties:

Knick of Time

Under the Table and Dreaming
Cottage Instincts
Blue Cricket Design
It's So Very Cheri

Tools are for Women Too

Everything I make is for sale, so if you see something you like, please contact me.

Tuesday, October 26, 2010

Even more signs

I have been busy working on more sign styles for an upcoming craft show:
Monogram "R" with flourishes around

18" diameter circle
made with pallet wood
painted black on white and distressed

Wine Cellar
with carved groove around edge
21 1/4" diameter circle
made with pallet wood


12" x 9"
painted black on white and distressed

21 1/4" x 4"
made with pallet wood
painted black on white and distressed

I explained how I do my signs in a previous post, you can read it here

I'm going to parties at the following blogs:
Today's Creative Blog
It's So Very Cheri
Blue Cricket Design
The Shabby Chic Cottage
Funky Junk Interiors
Under The Table and Dreaming
My Repurposed Life

Everything I make is for sale, so if you see something you like, please contact me.
